Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).

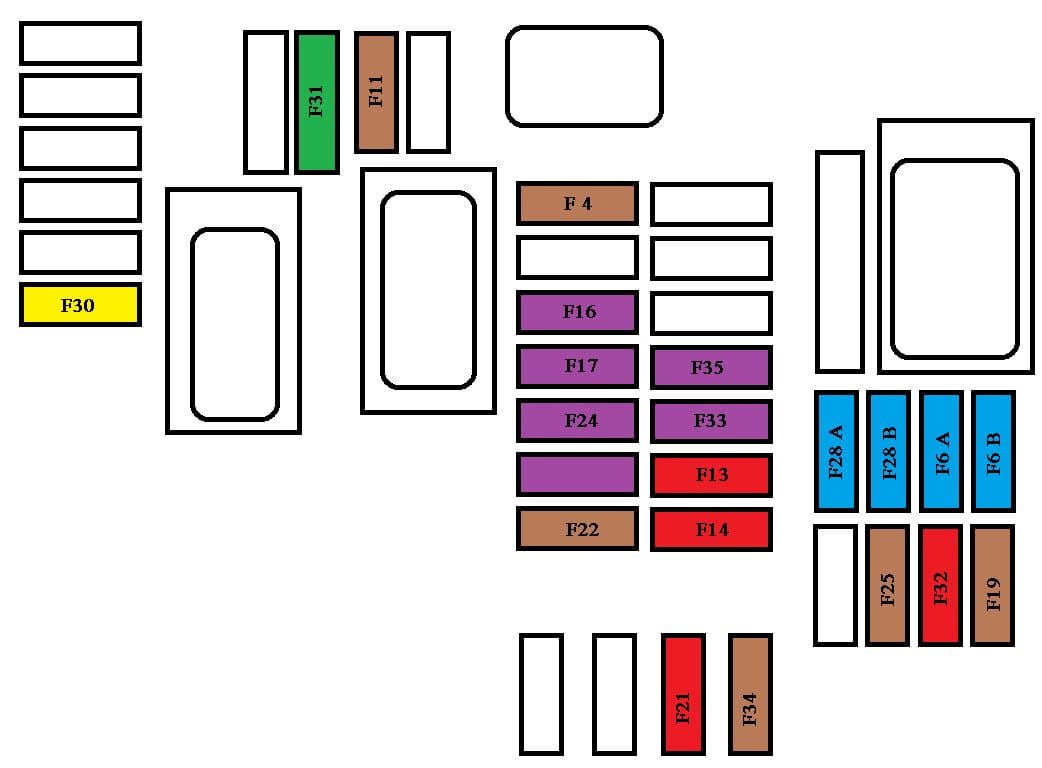

Version 1 (Full)
| Fuse | Ampere rating [A] | Functions |
| F4 | 5 | Emergency and assistance calls |
| F6 A or B | 15 | Audio system, touch screen, CD player, navigation |
| F11 | 5 | “Keyless Entry and starting” system |
| F13 | 10 | Front 12 V accessory socket |
| F14 | 10 | 12 V accessory socket in the boot |
| F16 | 3 | Glove box lamp, rear courtesy lamp |
| F17 | 3 | Vanity mirror lamp, front courtesy lamp |
| F19 | 5 | Instrument panel |
| F21 | 10 | Multifunction screen, air conditioning |
| F22 | 5 | Reversing camera, parking sensors |
| F24 | 3 | Rain and sunshine sensor |
| F25 | 5 | Airbags |
| F28 A or B | 15 | Audio system (battery +) |
| F30 | 20 | Rear wiper |
| F31 | 30 | Locks |
| F32 | 10 | Hi-Fi amplifier |
| F33 | 3 | Memorisation of driving positions |
| F34 | 5 | Electric power steering |
| F35 | 3 | Seat belts not fastened display |

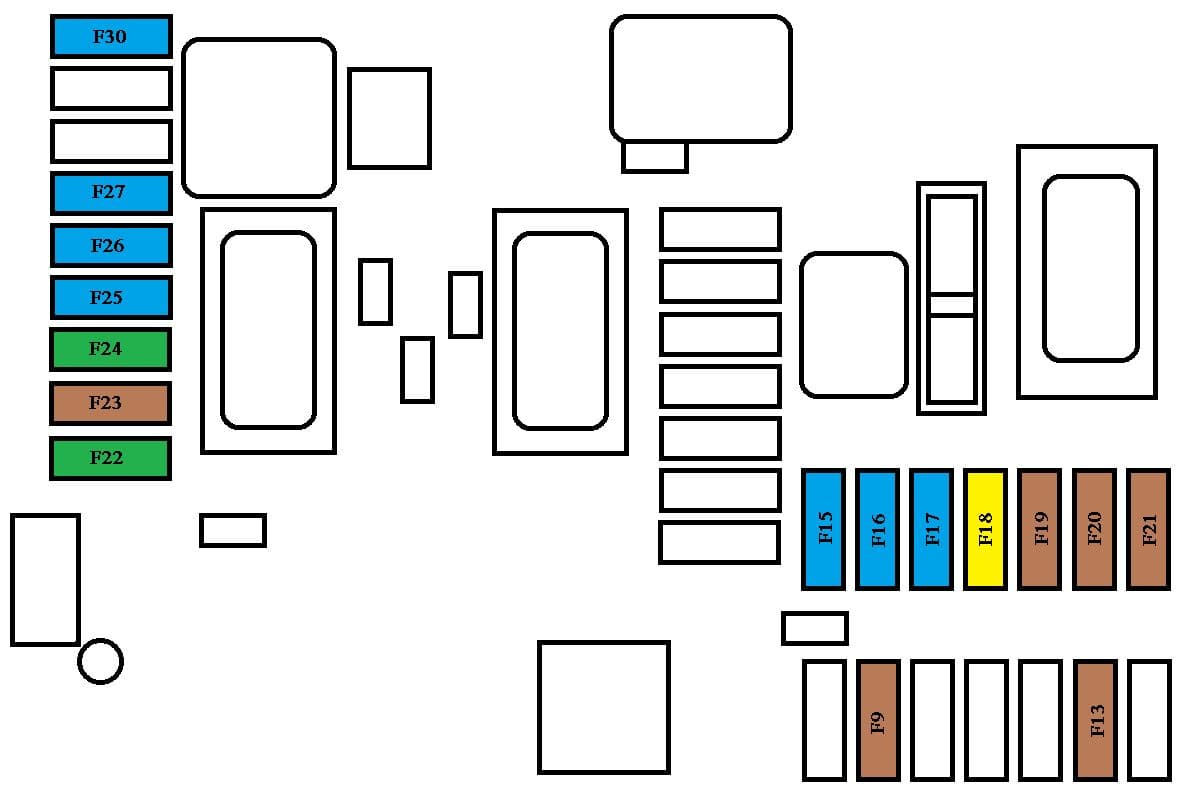

Version 2 (Eco)
| Fuse | Ampere rating [A] | Functions |
| F9 | 5 | Emergency and assistance calls |
| F13 | 5 | Reversing camera and parking sensors |
| F15 | 15 | 12 V accessory socket |
| F16 | 15 | Cigarette lighter |
| F17 | 15 | Audio system |
| F18 | 20 | Touch screen, CD player, audio and navigation system |
| F19 | 5 | Rain, sunshine sensor |
| F20 | 5 | Airbags |
| F21 | 5 | Instrument panel |
| F22 | 30 | Interior, exterior, front and rear locks |
| F24 | ||
| F23 | 5 | Glove box lamp, vanity mirror, front and rear courtesy lamps |
| F25 | 15 | Front/rear screenwash pump |
| F27 | ||
| F26 | 15 | Horn |
| F30 | 15 | Rear wiper |
Engine compartment fuses
The fusebox is located in the engine compartment near the battery.

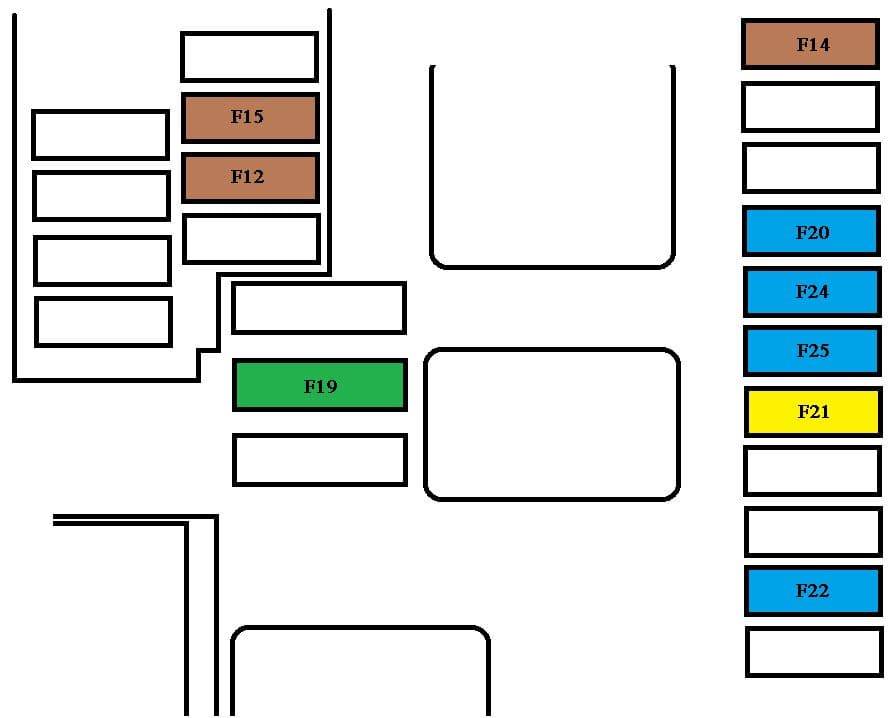

Version 1 (Full)
Fusebox 1
| Fuse | Ampere rating [A] | Functions |
| F12 | 5 | Park Assist control unit |
| F14 | 25 | Front and rear screenwash pump |
| F15 | 5 | Power steering |
| F19 | 30 | Front wiper motor |
| F20 | 15 | Front and rear screenwash motors |
| F21 | 20 | Headlamp wash |
| F22 | 15 | Horn |
| F23 | 15 | Right hand main beam headlamp |
| F24 | 15 | Left hand main beam headlamp |
Fusebox 2
| Fuse | Ampere rating [A] | Functions |
| F8 | 30 | Diesel emissions control system (AdBlue®) |
| F10 | 5 | Automatic gearbox |
| F12 | 15 | Automatic gearbox |

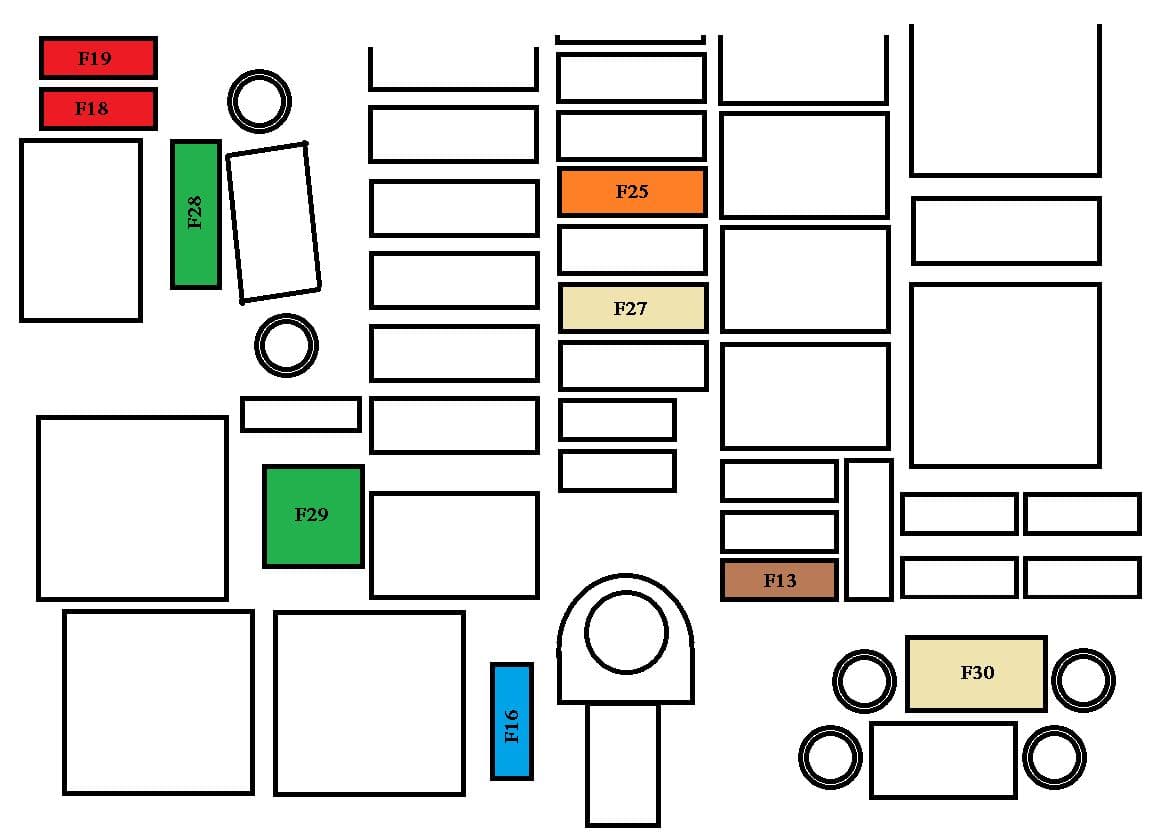

Version 2 (Eco)
| Fuse | Ampere rating [A] | Functions |
| F13 | 5 | Built-in systems interface |
| F16 | 15 | Front foglamps |
| F18 | 10 | Right hand main beam headlamp |
| F19 | 10 | Left hand main beam headlamp |
| F25 | 40 | Headlamp wash relay (aftermarket fitment) |
| F27 | 25 | Built-in systems interface |
| F28 | 30 | Diesel emissions control system (AdBlue®) |
| F29 | 30 | Front wiper motor |
| F30 | 80 | Pre-heater plugs (Diesel), additional programmable heating (aftermarket fitment), headlamp wash pump |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
