Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).

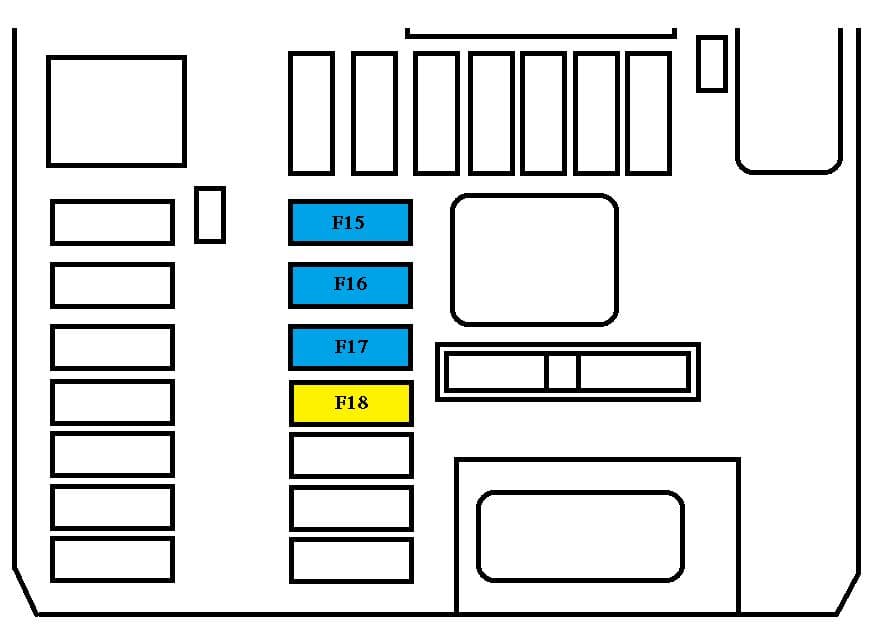

Veriosn 1 (FULL)
| Fuse | Ampre rating [A] | Functions |
| F15 | 15 | 12 V accessory socket |
| F16 | 15 | Cigarette lighter |
| F17 | 15 | Audio system |
| F18 | 20 | Audio system (battery +) |
Version 2 (ECO)
| Fuse | Ampere rating [A] | Functions |
| F6 A or B | 15 | Audio system |
| F13 | 10 | Cigarette lighter |
| F14 | 10 | 12 V accessory socket |
| F28 A or B | 15 | Audio system (battery +) |

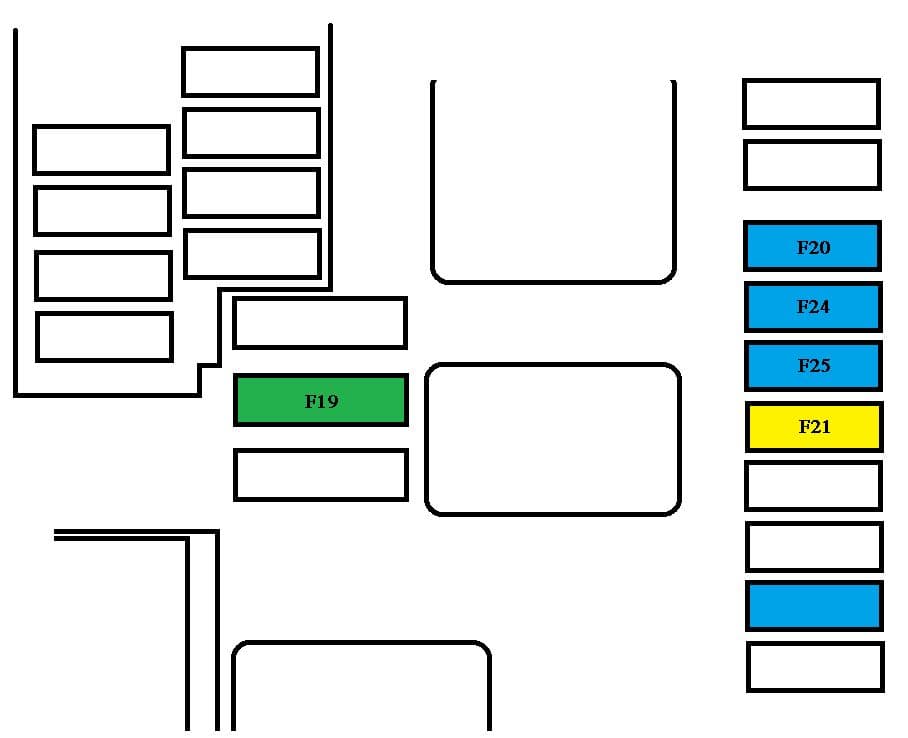

Engine compartment fuses
The fusebox is placed in the engine compartment near the battery.
Version 1 (FULL)
| Fuse | Ampere rating [A] | Functions |
| F19 | 30 | Front wiper motor |
| F20 | 15 | Front and rear screenwash pumps |
| F21 | 20 | Headlamp wash |
| F22 | 15 | Horn |
| F23 | 15 | Right hand main beam headlamp |
| F24 | 15 | Left hand main beam headlamp |
Version 2 (ECO)
| Fuse | Ampere rating [A] | Functions |
| F16 | 15 | Front foglamps |
| F18 | 10 | Right hand main beam headlamp |
| F19 | 10 | Left hand main beam headlamp |
| F25 | 40 | Headlamp wash relay (aftermarket fitment) |
| F29 | 30 | Front wiper motor |
| F30 | 80 | Pre-heater plugs (Diesel), additional programmable heating (aftermarket fitment), headlamp wash pump |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
