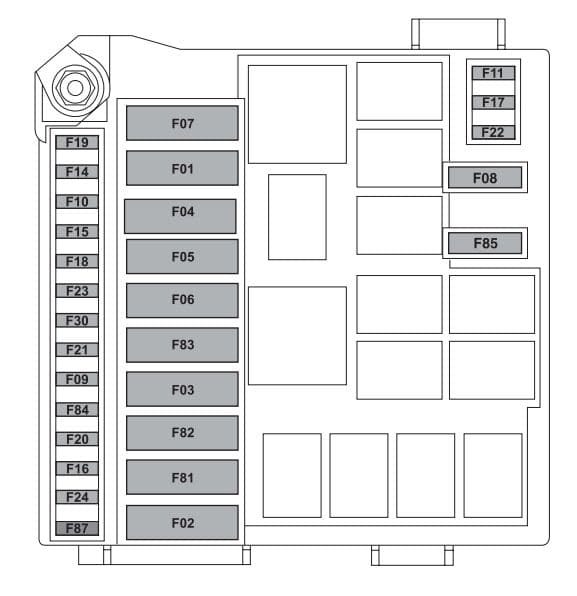

Engine compartment fuse box
| Description | Fuse | Ampere rating [A] |
| BCM | F01 | 60 |
| RDU | F02 | 50 |
| Ignition switch | F03 | 20 |
| BSM1 (pump) | F04 | 40 |
| EPS | F05 | 70 |
| Engine single speed cooling fan (heated engines) | F06 | 20 |
| Engine dual speed cooling fan solenoid valve/Engine cooling fan low speed (conditioned engines) | F06 | 30 |
| Engine cooling electric fan high speed | F07 | 40 |
| Fog lights | F08 | 30 |
| Headlamp washer pump | F09 | 20 |
| Horns | F10 | 15 |
| Engine management system (secondary loads) | F11 | 10 |
| Main beam headlights | F14 | 15 |
| Sunroof motor | F15 | 20 |
| +15 ECM/coil T10 | F16 | 7,5 |
| ECM main loads (versions 0.9 TwinAir 85 HP/1.2 8V 69 HP) | F17 | 10 |
| ‘+30 ECM/coil T09 | F18 | 5 |
| Fuel pump | F19 | 15 |
| Heated rear window/mirror defrosters | F20 | 30 |
| Air conditioning compressor | F21 | 7,5 |
| Supply from SCM main relay for ECU (versions 0.9 TwinAir 85 HP/1.3 16V MultiJet) | F22 | 15 |
| Supply from SCM main relay for ECM (versions 1.2 8V 69 HP) | F22 | 20 |
| BSM 9.0 (ECU, valves) | F23 | 20 |
| BSM 9.0/NGE (+15 INT) | F24 | 7,5 |
| Heater plug control unit (versions 1.3 16V MultiJet) | F81 | 60 |
| Passenger compartment fan | F82 | 40 |
| Front power socket (with or without cigar lighter) | F85 | 15 |
| Battery charge status sensor | F87 | 5 |
+15 = ignition-operated positive terminal
+30 = battery direct positive terminal (not ignition-operated)

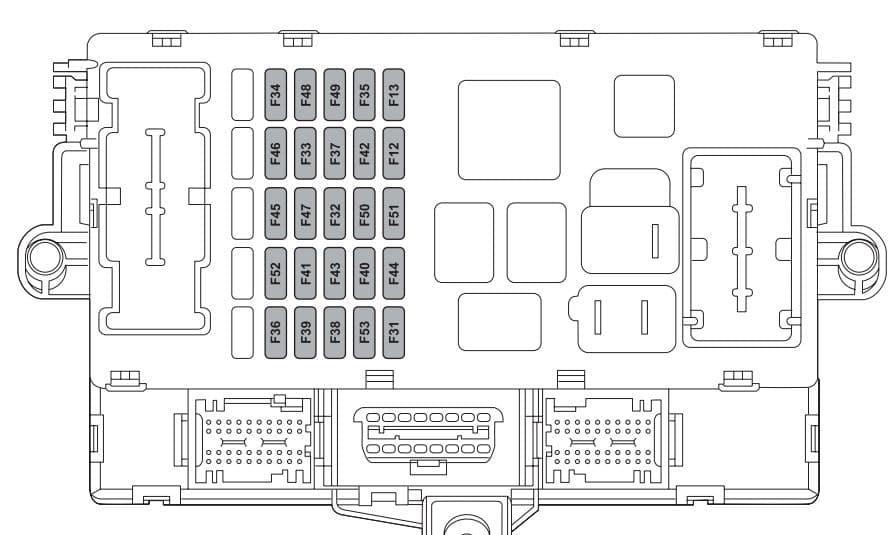

Dashboard fuse box
| Description | Fuse | Ampere rating [A] |
| Free | F12 | — |
| + 15 headlamp alignment corrector and IPC headlamp levelling | F13 | 5 |
| + 15 INT/A | F31 | 5 |
| Free | F32 | — |
| +30 KL30 | F36 | 10 |
| +15 switch on brake pedal (NO) | F37 | 7,5 |
| Door central locking | F38 | 20 |
| Two-way windscreen washer pump | F43 | 20 |
| Front electric window (driver side) | F47 | 20 |
| Front electric window (passenger side) | F48 | 20 |
| + 15 KL15 | F49 | 7,5 |
| + 15 KL15 | F50 | 7,5 |
| + 15 KL15 | F51 | 5 |
| +30 KL30 | F53 | 7,5 |
+15 = ignition-operated positive terminal
+30 = battery direct positive terminal (not ignition-operated)

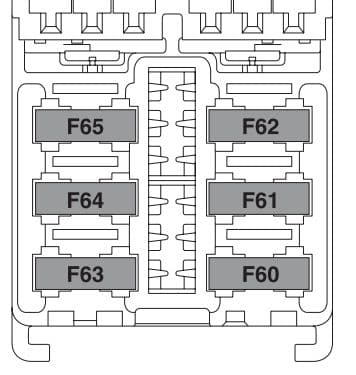

Luggage compartment fuse box
| Description | Fuse | Ampere rating [A] |
| BOSE HI-FI system | F60 | 20 |
| Free | F61 | — |
| Heated seats | F62 | 15 |
| Rear right electric window | F63 | 20 |
| Rear left electric window | F64 | 20 |
| Alarm setup supply | F65 | 7,5 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
