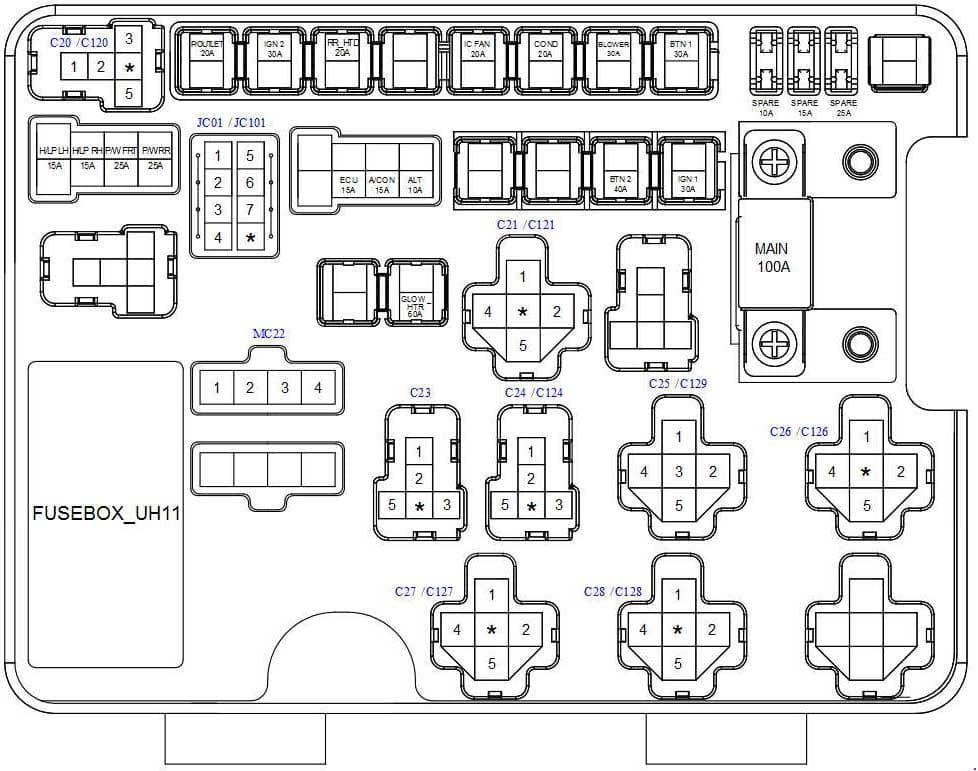

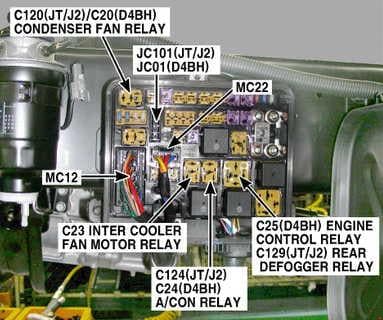

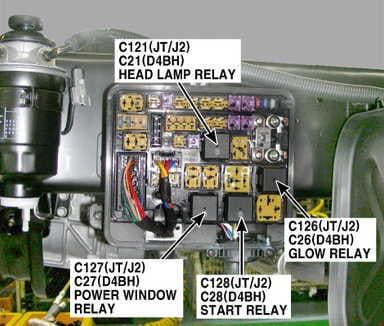

Fuse box
| Fuse |
A |
Circuits protected |
| POWER CONNECTOR | 15 | Instrument Cluster, Audio, Heater Control Module, ETACM |
| START | 10 | Start Relay, ECM |
| B/UP | 10 | Back-up Lamp Switch |
| ENG | 15 (D4BH) 10 (J2/JT) | Injection Pump, ECM, Condenser Fan Relay, Neutral Switch, Vehicle Speed Sensor, EGR Solenoid Valve, Glow Control Unit, Fuel Filter Warning Switch, Oil Filter, Generator, Inter Cooler Fan Relay |
| PTO | 10 | – |
| CLUSTER | 10 | ETACM, Instrument Cluster, Generator Resister |
| TURN | 10 | Hazard Switch |
| HEATER CONTROL | 10 | Blower Relay, Heater Control Module |
| MODULE | 10 | Rear Fog Lamp Relay, ETACM, Head Lamp Relay |
| F/HEATER | 15 | – |
| WIPER | 15 | Wiper Motor, Multifunction Switch |
| CIGAR | 15 | Cigarette Lighter |
| ACC | 10 | Audio |
| HLLD | 10 | Head Lamp Leveling Switch, Head Lamp Leveling Actuator LH/RH |
| D/LOCK | 20 | Door Lock/Unlock Relay |
| STOP | 10 | Stop Lamp Switch, Data Link Connector |
| MIRROR | 10 | – |
| HORN | 10 | Horn Relay |
| RR FOG | 10 | Rear Fog Lamp Switch |
| FR FOG | 15 | Front Foq Lamp Relay |
| DRL | 10 | DRL Control Module |
| HAZARD | 15 | Hazard Switch |
| H/FREE | 10 | Buzzer, Door Warning Switch |
| ILLUMI | 10 | DRL Control Module, Driver/Passenger Power Window Switch, Hazard Switch, Head Lamp Leveling Switch, Front/Rear Fog Lamp Switch, Heater Control Module, Audio, Instrument Cluster, Mirror Defogger Switch |
| TNS | 10 | License Lamp, Position Lamp LH/RH, Rear Combination Lamp LH/RH |
| Fuse |
A |
Circuits protected |
| MAIN (BATT) |
15 | Instrument Cluster, Audio, Heater Control Module, ETACM |
| START | 10 | Start Relay, ECM |
| B/UP | 10 | Back-up Lamp Switch |
| ENG | 15 (D4BH) 10 (J2/JT) | Injection Pump. ECM, Condenser Fan Relay. Neutral Switch, Vehicle Speed Sensor. EGR Solenoid Valve, Glow Control Unit, Fuel Filter Warning Switch, Oil Filter, Generator, Inter Cooler Fan Relay |
| PTO | 10 | – |
| CLUSTER | 10 | ETACM, Instrument Cluster. Generator Resister |
| TURN | 10 | Hazard Switch |
| HEATER CONTROL | 10 | Blower Relay, Heater Control Module |
| MODULE | 10 | Rear Foq Lamp Relay, ETACM, Head Lamp Relay |
| F/H EATER | 15 | |
| WIPER | 15 | Wiper Motor, Multifunction Switch |
| CIGAR | 15 | Cigarette Lighter |
| ACC | 10 | – |
| HLLD | 10 | Head Lamp Levellnq Switch, Head Lamp Levelinq Actuator LH/RH |
| D/LOCK | 20 | Door Lock/Unlock Relay |
| STOP | 10 | Stop Lamp Switch, Data Link Connector |
| MIRROR | 10 | – |
| HORN | 10 | – |
| RR FOG | 10 | Rear Foq Lamp Switch |
| FR FOG | 15 | – |
| DRL | 10 | DRL Control Module |
| HAZARD | 15 | Hazard Switch |
| H/FREE | 10 | Buzzer, Door Warning Switch |
| ILLUMI | 10 | DRL Control Module, Driver/Passenger Power Window Switch, Hazard Switch, Head Lamp Leveling Switch, Front/Rear Fog Lamp Switch, Heater Control Module, Audio, Instrument Cluster, Mirror Defogger Switch |
| TNS | 10 | License Lamp, Position Lamp LH/RH, Rear Combination Lamp LH/RH |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
